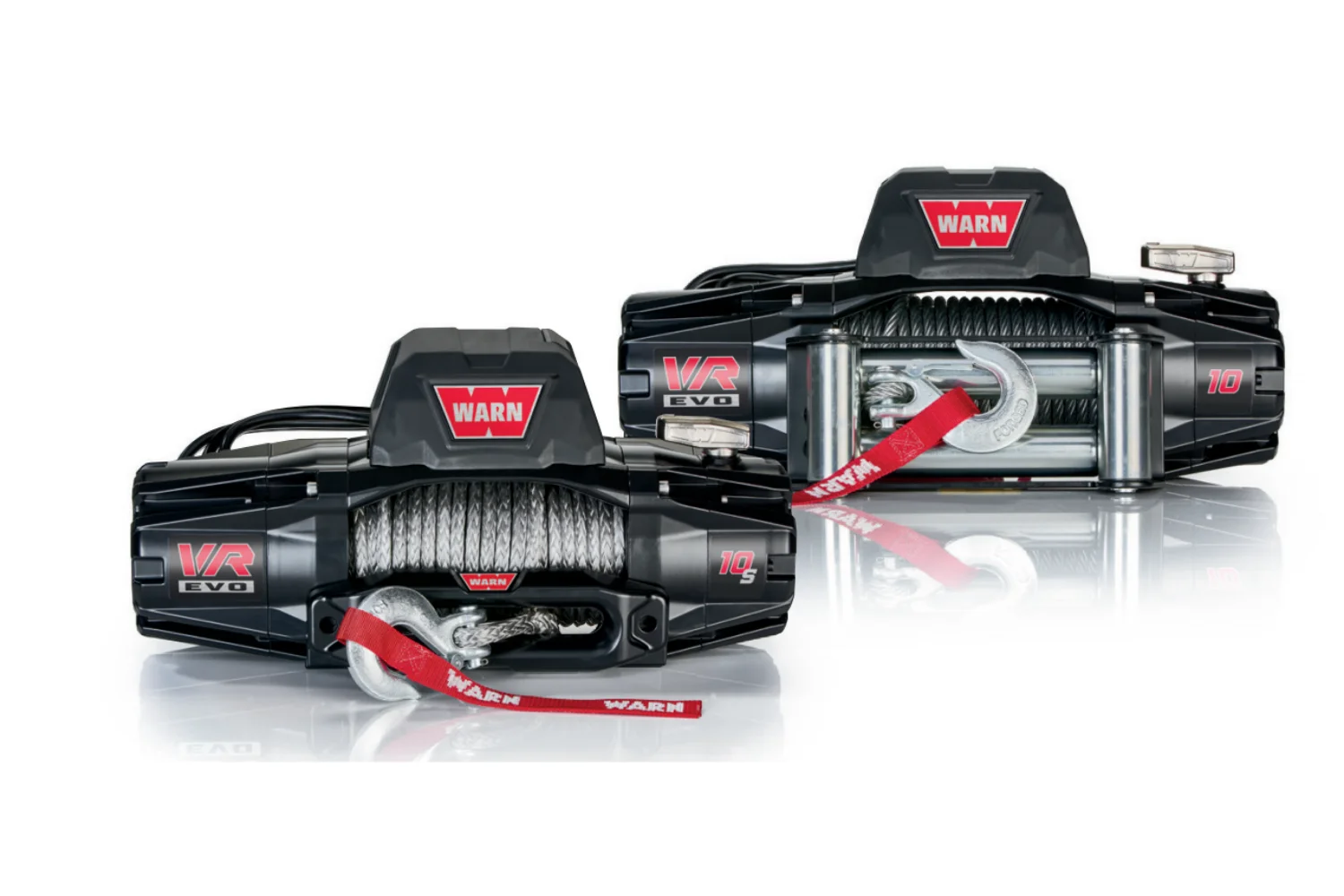

Ideal weight capacity and line speed for 1/2-ton pickups, Jeeps, and larger SUVs. The VR EVO 10 and 10-S feature
IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a
state-of-the-art, two-in-one remote for added ease of use and versatility.
With it’s fast line-speed and lower amp
draw, the VR EVO series of winches are the hardest-working standard-duty winches we’ve ever made, with tactical
styling that looks great up front and at a price that won’t pull you out of your budget.
| Winch model: VR EVO 10, VR EVO 10–S |
| Part number: 103252 (VR EVO 10), 103253 (VR EVO 10-S) |
| Rated line pull: 4536 kg (10000 lbs.) |
| Motor: 12V DC, series wound |
| Electrical controls: Albright Contactor |
| Remote Control: 2-in-1 plug-in remote with wireless capability and 3.5m (11.5’ ) lead |
| Geartrain: 3-Stage Planetary |
| Gear ratio: 218:1 |
| Clutch (freespooling): Rotating ring gear clutch |
| Brake: Spring Brake |
| Drum diameter/Length: Steel and Synthetic: 6.73cm/23cm (2.5″/9.0″) |
| Shipping weight steel: 41.7 kg (91.93 lbs.) |
| Shipping weight bare winch: 32.84 kg (72.40 lbs.) |
| Net product steel: 33.9 kg (74.74 lbs.) |
| Net product weight, bare winch: 25.04 kg) (55.20 lbs.) |
| Wire Rope: Steel: 9mm x 27.4m (.354” x 90’) Synthetic: 9.5mm x 27.4m (3/8” x 90’) |
| Fairlead: Steel: Roller, Synthetic: Die Cast Hawse |
| Recommended Battery: 650 CCA minimum for winching |
| Battery leads: 25mm x 2m (0.98’’ x 6.5’) |
| Finish: Powder coating over primer undercoating |
| Line Pull Kg. (Lbs.) | Line Speed M/min. (FT./min) | Motor Current | Pull by layer layer/Kg. (Lbs) |
| 0 | 8.3 (27.1) | 58 amps | 1/4536 (10000) |
| 910 (2000) | 4.2 (13.9) | 125 amps | 2/3627 (7996) |
| 1810 (4000) | 3.0 (9.9) | 185 amps | 3/3021 (6661) |
| 2720 (6000) | 2.5 (8.2) | 244 amps | 4/2589 (5708) |
| 3630 (8000) | 2.0 (6.5) | 303 amps | 5/2265 (4993) |
| 4536 (10000) | 1.6 (5.2 | 358 amps |

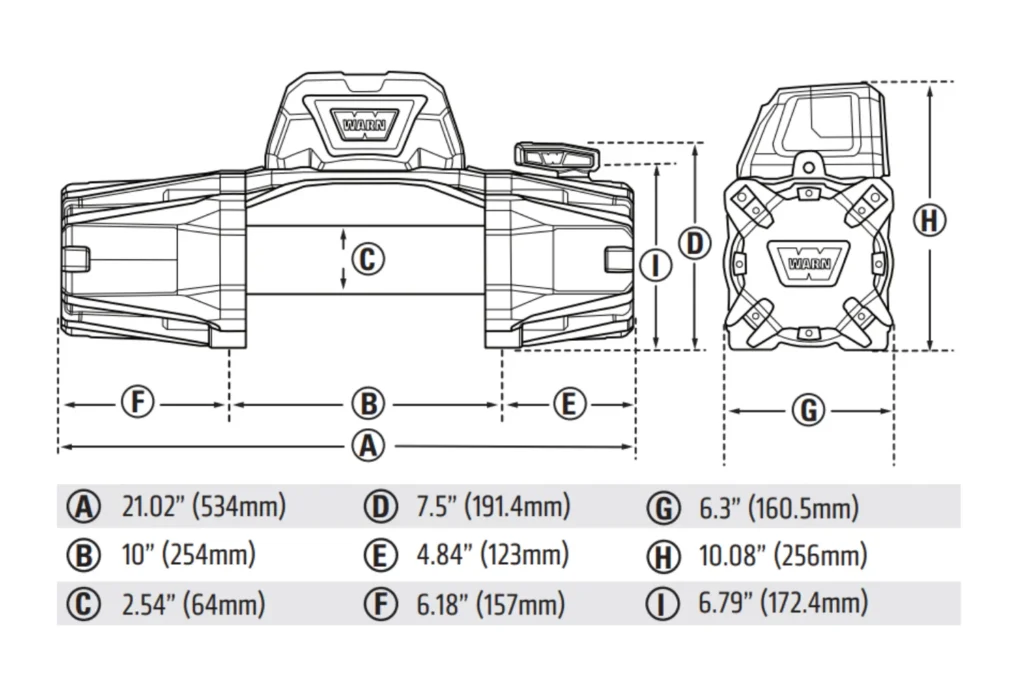

Winch Dimensions: 534mm L x 160.5mm D x 256mm H (21” L x 6.3” D x 10.1” H)
Mounting Bolt Pattern: 254mm x 114.3mm (10.0” x 4.5”)
